Aspects of DFB butterfly lasers

2023-12-25

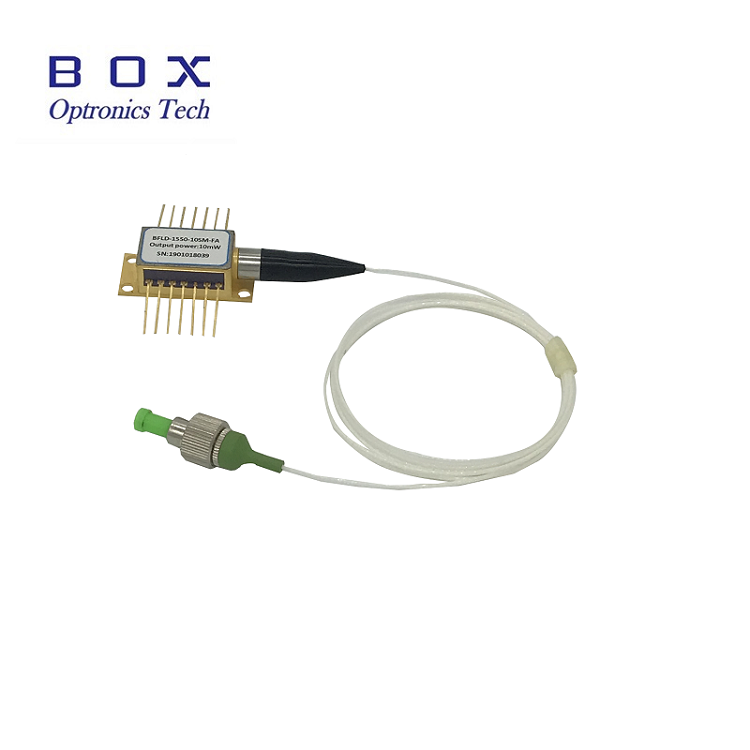

DFB (Distributed Feedback) butterfly lasers refer to a specific type of semiconductor laser diode that combines DFB laser technology with a butterfly package design. This design is commonly used in optical communication systems, particularly in the transmission of data over optical fiber networks.

Here are key features and aspects of DFB butterfly lasers:

1. DFB Laser Technology:

  - Distributed Feedback: DFB lasers are a type of semiconductor laser diode that incorporates a grating structure within the active region. This grating provides distributed feedback, allowing the laser to emit light at a specific, well-defined wavelength.

2. Butterfly Package Design:

  - Hermetic Package: The butterfly package is a hermetic, sealed package designed to protect the laser diode from environmental factors such as moisture and contaminants. This is crucial for maintaining the performance and reliability of the laser, especially in telecommunications applications.

  - Integration of Optical Components: The butterfly package typically integrates not only the DFB laser diode but also other essential optical components. These may include a thermoelectric cooler (TEC) for temperature stabilization, a photodetector for monitoring the laser output, and a monitor diode for power control.

3. Applications:

  - Optical Communication Systems: DFB butterfly lasers are widely used in optical communication systems, including long-haul, metro, and access networks. They are commonly employed in dense wavelength-division multiplexing (DWDM) systems.

  - Data Transmission: These lasers play a crucial role in transmitting data over optical fiber by providing a stable and precise light source at specific wavelengths.

4. Wavelength Stability:

  - DFB lasers are known for their narrow linewidth and stable output wavelength. This stability is essential for maintaining the integrity of the optical signal in communication systems.

5. Temperature Control:

  - The thermoelectric cooler (TEC) integrated into the butterfly package allows for precise temperature control of the DFB laser. This is important because the wavelength of a semiconductor laser is temperature-dependent, and maintaining a stable temperature ensures consistent performance.

6. Monitor Diode:

  - The monitor diode integrated into the package allows for monitoring the optical power emitted by the laser. This feedback mechanism is used to control and adjust the laser power to maintain optimal performance.

7. Pigtail Configuration:

  - DFB butterfly lasers often have a pigtail, which is a short length of optical fiber attached to the laser. The pigtail facilitates the connection of the laser to the optical communication system.

DFB butterfly lasers are a key component in the infrastructure of optical communication networks, enabling the transmission of high-speed data over long distances with precision and reliability. Their stable output characteristics and hermetic packaging make them well-suited for demanding telecommunications applications.
