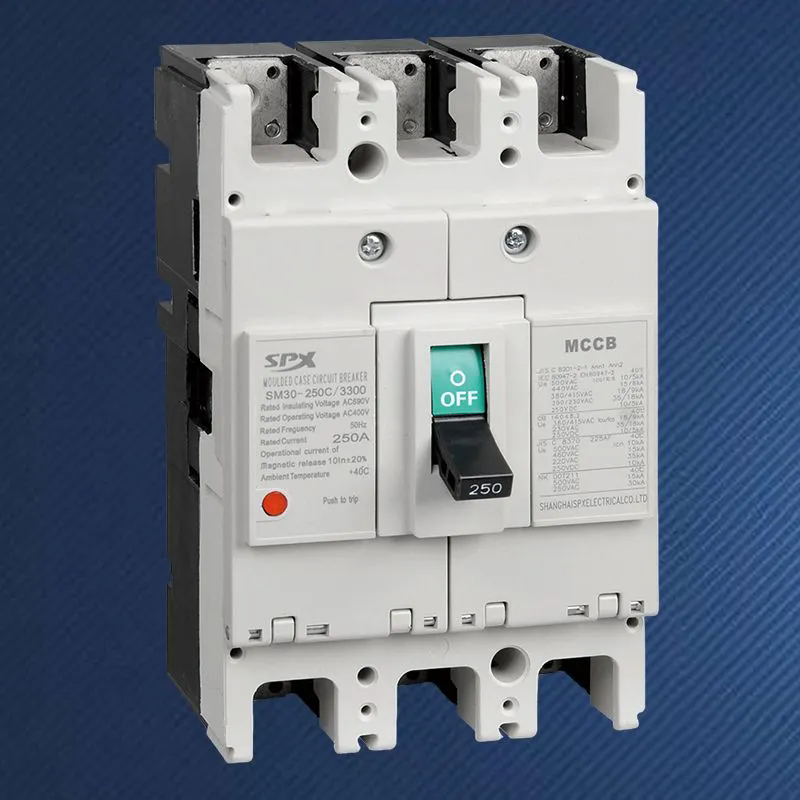

Applications and Advantages of MCCB Thermal Magnetic

Applications of MCCB Thermal Magnetic

1. Industrial Electrical Panels:

  - Branch Circuit Protection: MCCBs provide overcurrent and short-circuit protection for individual branch circuits, ensuring that any faults are isolated without affecting the entire system.

  - Main Feeder Protection: Used to protect main feeders from overcurrent and short-circuit conditions, ensuring the safe operation of industrial electrical systems.

2. Commercial Electrical Systems:

  - Building Distribution Systems: Protects electrical distribution systems in commercial buildings, including offices, malls, and hospitals.

  - HVAC Systems: Safeguards heating, ventilation, and air conditioning systems from electrical faults.

3. Motor Protection:

  - Overload Protection: Provides thermal protection for motors, preventing damage from prolonged overcurrent conditions.

  - Short-Circuit Protection: Instantly trips during short circuits, protecting motors and associated wiring from high fault currents.

4. Residential Electrical Systems:

  - Main Panel Protection: Used in residential main electrical panels to protect the entire home from overcurrent and short-circuit conditions.

  - High-Load Appliances: Ensures the safety of high-load appliances like air conditioners, electric stoves, and water heaters.

5. Renewable Energy Systems:

  - Solar Power Systems: Protects photovoltaic systems from overcurrent and short-circuit conditions, ensuring safe and efficient operation.

  - Wind Power Systems: Safeguards wind turbines and associated electrical components.

6. Marine and Offshore Applications:

  - Shipboard Electrical Systems: Provides protection for electrical systems on ships and offshore platforms, ensuring safety in harsh environments.

  - Offshore Oil and Gas Platforms: Protects electrical systems in offshore drilling and production facilities.

Advantages of MCCB Thermal Magnetic

1. Reliability and Durability:

  - Proven Technology: MCCBs are a well-established and reliable technology with a long track record of successful use in various applications.

  - Robust Construction: Designed to withstand harsh operating conditions and provide long-term protection.

2. Adjustable Settings:

  - Customizable Trip Settings: Many MCCBs offer adjustable trip settings, allowing users to fine-tune the protection to match specific circuit requirements.

  - Flexibility: Can be adapted to a wide range of applications by adjusting the trip characteristics.

3. High Interrupting Capacity:

  - Fault Handling: Capable of interrupting high fault currents without damage, ensuring the safety and integrity of the electrical system.

  - Wide Range of Ratings: Available in various interrupting capacities to suit different application needs.

4. Comprehensive Protection:

  - Thermal and Magnetic Protection: Provides both overload (thermal) and short-circuit (magnetic) protection in a single device.

  - Dual Functionality: Ensures comprehensive protection for electrical systems, reducing the need for additional protective devices.

5. Ease of Installation and Maintenance:

  - Simple Installation: Designed for easy installation in standard electrical panels and enclosures.

  - Minimal Maintenance: Requires little maintenance, reducing downtime and maintenance costs.

6. Safety and Compliance:

  - Standards Compliance: Meets industry standards and regulations for electrical protection, ensuring safety and reliability.

  - Enhanced Safety: Provides a high level of protection for both equipment and personnel, reducing the risk of electrical hazards.

7. Cost-Effectiveness:

  - Reduced Downtime: By providing reliable protection and preventing electrical faults, MCCBs help minimize downtime and associated costs.

  - Long Lifespan: Durable construction and reliable performance contribute to a long lifespan, providing cost savings over time.
