Advantages of Duplex Steel Blind Flanges

Duplex steel blind flanges are specialized components used in piping systems to seal the end of a pipe, preventing flow. Duplex stainless steel, known for its high strength and excellent corrosion resistance, makes these flanges particularly suitable for demanding environments. Here's a detailed overview of duplex steel blind flanges:

Material Characteristics:

1. Duplex Stainless Steel:

  - Composition: Typically consists of a balanced mix of austenite and ferrite phases. Common grades include 2205 (UNS S32205) and 2507 (UNS S32750).

  - Properties:

    - High strength and durability.

    - Excellent resistance to stress corrosion cracking and pitting.

    - Good weldability and toughness.

Design and Function:

1. Blind Flange:

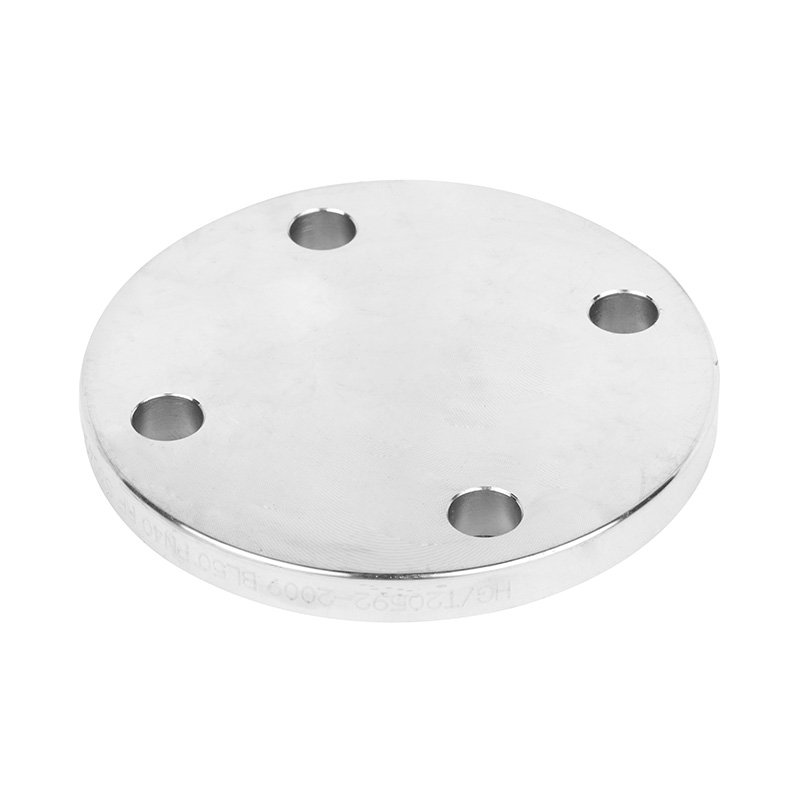

  - Design: A solid disk used to close the end of a pipe, with bolt holes around the perimeter for attachment.

  - Function:

    - Used to isolate sections of a piping system.

    - Allows for maintenance, testing, and repair without the need to remove entire sections of the pipeline.

2. Dimensions:

  - Standards: Manufactured to conform to standards such as ASME B16.5, ASME B16.47, or other relevant international standards.

  - Sizes: Available in various sizes to match the corresponding pipe diameters.

Applications:

1. Oil and Gas Industry:

  - Used in offshore and onshore platforms, refineries, and processing plants where high strength and corrosion resistance are critical.

  - Suitable for environments with high chloride content, such as subsea applications.

2. Chemical Processing:

  - Ideal for piping systems handling corrosive chemicals, acids, and other aggressive substances.

  - Ensures long service life and reliability in harsh chemical environments.

3. Power Generation:

  - Used in power plants, particularly in systems exposed to high temperatures and pressures.

  - Ensures safe and efficient operation of steam and gas turbines.

4. Marine and Shipbuilding:

  - Utilized in shipbuilding and marine structures for their excellent resistance to seawater corrosion.

  - Ensures the integrity of piping systems in harsh marine environments.

Advantages:

1. High Strength:

  - Duplex stainless steel offers higher yield strength compared to austenitic stainless steels, allowing for thinner and lighter components without compromising strength.

2. Corrosion Resistance:

  - Superior resistance to pitting, crevice corrosion, and stress corrosion cracking makes duplex steel ideal for harsh environments.

3. Cost-Effective:

  - Despite being more expensive than carbon steel, the durability and longer service life of duplex steel can lead to lower overall costs in demanding applications.

4. Versatility:

  - Suitable for a wide range of industries and applications, from chemical processing to marine environments.

Maintenance and Handling:

1. Regular Inspection:

  - Periodically inspect for signs of wear, corrosion, or damage.

  - Ensure bolts and gaskets are in good condition and properly tightened to maintain a secure seal.

2. Cleaning:

  - Clean using appropriate methods to prevent the buildup of contaminants that could compromise the flange’s performance.

  - Avoid using abrasive materials that could scratch the surface and lead to corrosion.

3. Proper Storage:

  - Store in a dry, clean environment to prevent exposure to corrosive elements.

  - Use protective covers to keep the sealing surface clean and free from damage.

Conclusion:

Duplex steel blind flanges are essential components in various industrial applications where strength, durability, and corrosion resistance are crucial. Their ability to withstand harsh environments and demanding conditions makes them a preferred choice in industries such as oil and gas, chemical processing, and marine applications.
